644456-4
Manufacturer:
TE Connectivity
Mfr.Part #:
644456-4
Datasheet:
Description:

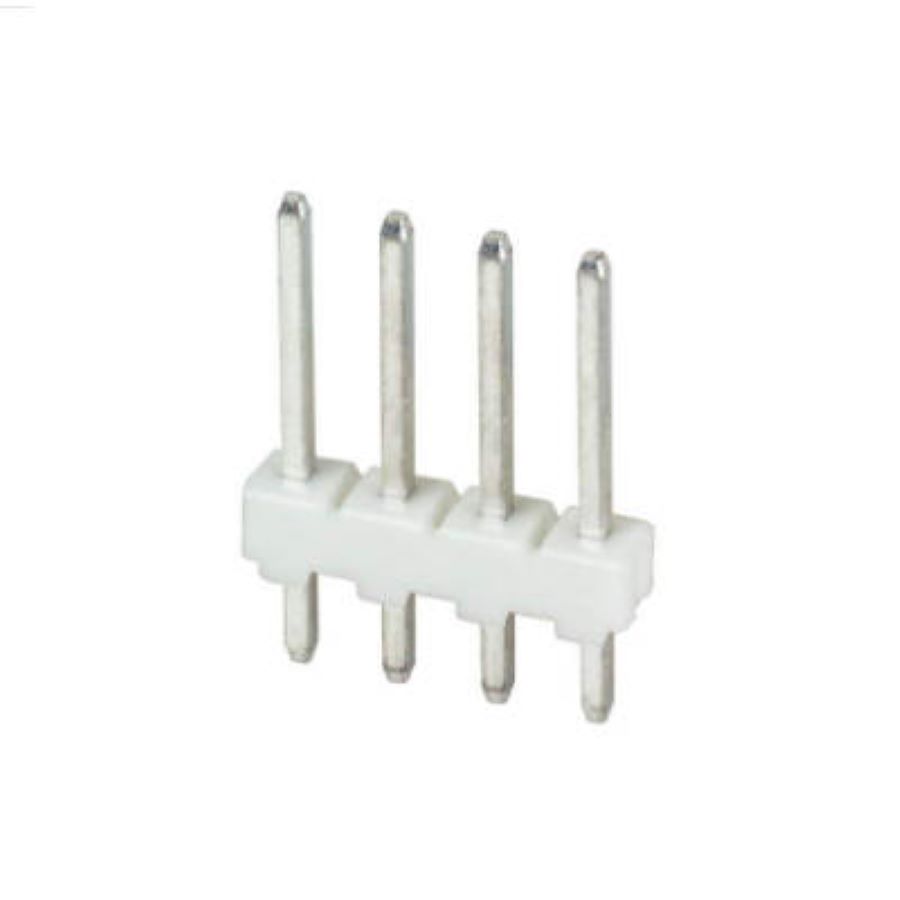

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Non-Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Contact Mating Length | 7.493 mm |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Contact Shape | Square |
| Termination Post Length | 2.79 mm |
